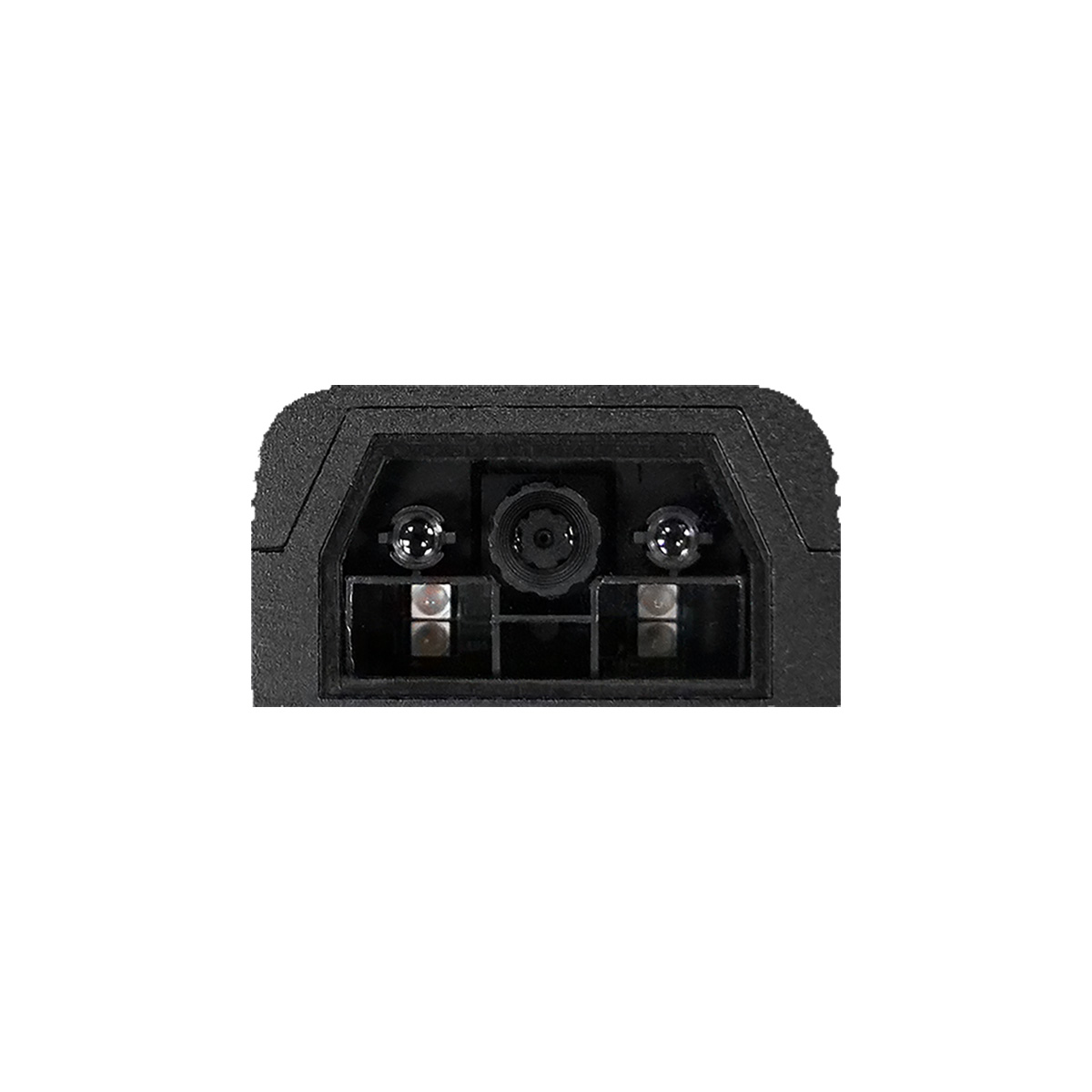

5552 Plus 設計時尚耐用，性能可靠。其核心是先進的二維引擎，即使掃描印刷不良或破損的條碼，也能確保每次掃描都快速且準確。它功能多樣，可讀取從傳統標籤到智慧型手機螢幕的各種條碼，無縫銜接現代工作流程。耐用的金屬外殼不僅提升了掃描器的高端質感，還改善了散熱性能，確保持續可靠的使用。 Z-5552 Plus 配備全平掃描窗口，易於清潔，並採用 IP54 防水防塵設計，可應對各種嚴苛環境。無論您是從事醫療保健、零售、銀行業務還是智慧型手機應用，這款掃描器的精湛工藝都能超越您的期望。 • 無與倫比的運動耐受力，可實現快速掃描
• 超快解碼一維與二維碼
• 輕鬆讀取螢幕上的條碼
• 全平窗口，易於清潔
• IP54 防水防塵等級
• 支援 GS1 和 FMD，適用於醫療保健領域
| Illumination Element | ||
|---|---|---|
| 617 nm LED | ||
| Light Source | ||
| 617 nm LED | ||
| Depth of Field | ||
| Code39 ( 5 mil ): 65 – 115 mmEAN 13 ( 13 mil ): 40 – 250 mm(Note: DOF may vary depending on environment condition and barcode quality.) | ||
| Min. Bar Width | ||
| 4 mils ( Code39 ) | ||
| Scan Angle | ||
| 44.4° H x 29.1° V | ||
| Sensitivity | ||
| 360° ( omnidirectional rotational sensitivity ) | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Two-color LED ( blue, red ) | ||
| Programmable Operation | ||
| Scan mode, Beeper tone | ||
| System Interface | ||
| RS-232, USB | ||
| Dimensions H x W x L | ||
|---|---|---|
| 64.2 x 47 x 25.7 mm ( device only ) | ||
| Weight (g) | ||
| 145 g | ||
| Cable | ||
| Standard 2M straight | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ± 10% | ||
| Operating Current | ||
| 230 mA @ 5V ( Typical ) | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliant; VCCI; BSMI | ||
| Safety | ||
| IEC 62471 | ||
| Operating Temperature | ||
|---|---|---|
| -20°C ~ 50°C ( -4°F ~ 122°F ) | ||
| Storage Temperature | ||
| -20°C ~ 60°C ( -4°F ~ 140°F ) | ||
| Humidity | ||
| 5% ~ 95% RH ( non-condensing ) | ||
| Light Level | ||
| Max. 100,000 Lux | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN (UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland), ISSN), Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked) | ||
| 2D Barcode | ||
| PDF417, MicroPDF417, Composite Codes (CC-A, CC-B, Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200(Standard, Inverse), QR Code (Standard, Inverse, Micro) | ||
