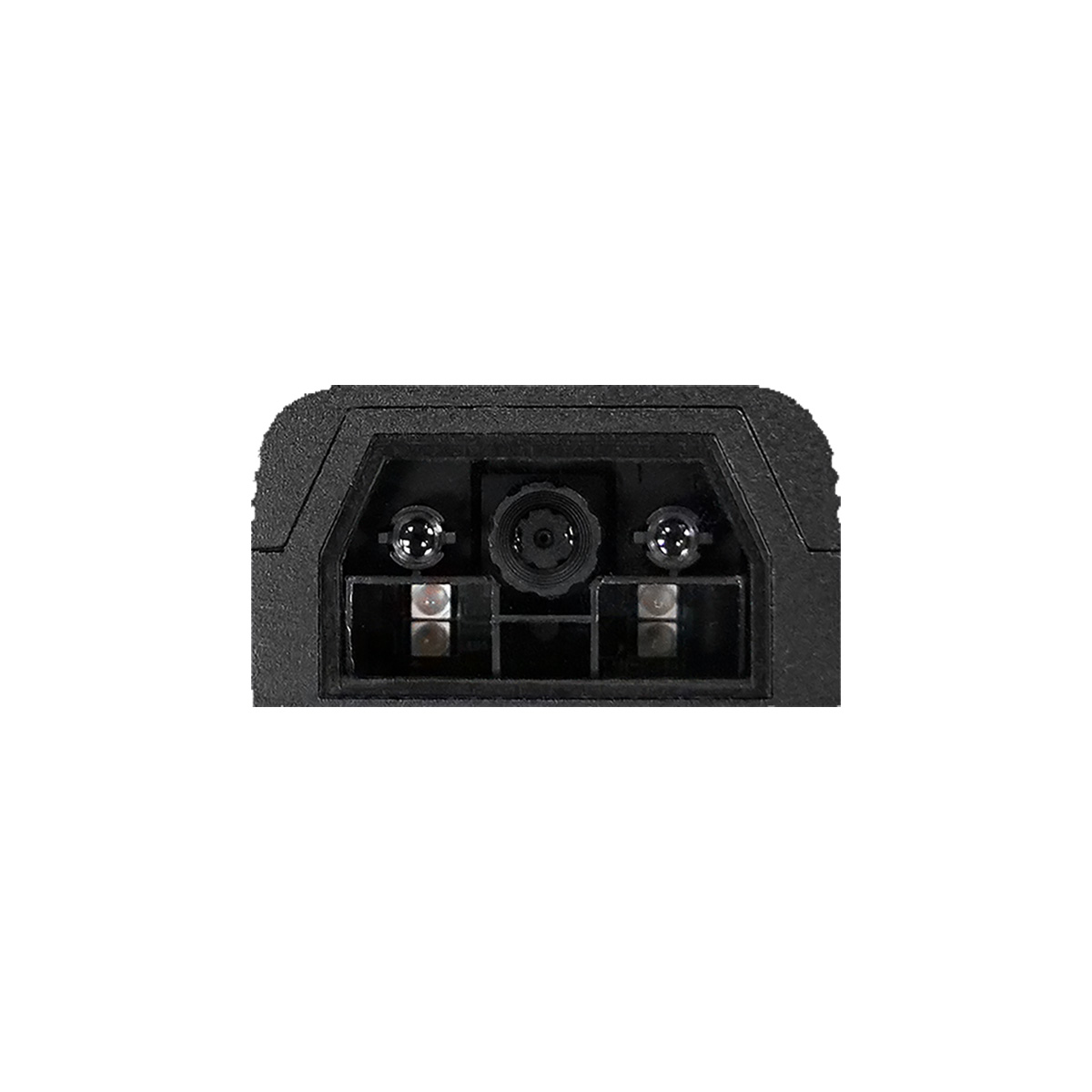

Z-5552 Plus provides dependable performance in a sleek, durable design. At its core is a cutting-edge 2D engine that ensures every scan is lightning-fast and accurate, even with poorly printed or damaged barcodes. Built for versatility, it reads barcodes on everything from traditional labels to smartphone screens, adapting seamlessly to modern workflows. Its durable metal housing not only enhances the scanner's premium feel but also improves heat dissipation for sustained, reliable use. With features like a full-flat scanning window for effortless cleaning and an IP54-rated design for water and dust resistance, the Z-5552 Plus is made to handle demanding environments. Whether you're in healthcare, retail, banking, or smartphone applications, this scanner is crafted to exceed your expectations.
• Unmatched motion tolerance for fast scanning
• Blazing-fast decoding of 1D and 2D codes
• Reads barcodes from screens with ease
• Full-flat window for easy cleaning
• IP54-rated water and dust protection
• Healthcare-ready with GS1 and FMD support
| Illumination Element | ||
|---|---|---|
| 617 nm LED | ||
| Light Source | ||
| 617 nm LED | ||
| Depth of Field | ||
| Code39 ( 5 mil ): 65 – 115 mmEAN 13 ( 13 mil ): 40 – 250 mm(Note: DOF may vary depending on environment condition and barcode quality.) | ||
| Min. Bar Width | ||
| 4 mils ( Code39 ) | ||
| Scan Angle | ||
| 44.4° H x 29.1° V | ||
| Sensitivity | ||
| 360° ( omnidirectional rotational sensitivity ) | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Two-color LED ( blue, red ) | ||
| Programmable Operation | ||
| Scan mode, Beeper tone | ||
| System Interface | ||
| RS-232, USB | ||
| Dimensions H x W x L | ||
|---|---|---|
| 64.2 x 47 x 25.7 mm ( device only ) | ||
| Weight (g) | ||
| 145 g | ||
| Cable | ||
| Standard 2M straight | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ± 10% | ||
| Operating Current | ||
| 230 mA @ 5V ( Typical ) | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliant; VCCI; BSMI | ||
| Safety | ||
| IEC 62471 | ||
| Operating Temperature | ||
|---|---|---|
| -20°C ~ 50°C ( -4°F ~ 122°F ) | ||
| Storage Temperature | ||
| -20°C ~ 60°C ( -4°F ~ 140°F ) | ||
| Humidity | ||
| 5% ~ 95% RH ( non-condensing ) | ||
| Light Level | ||
| Max. 100,000 Lux | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN (UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland), ISSN), Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked) | ||
| 2D Barcode | ||
| PDF417, MicroPDF417, Composite Codes (CC-A, CC-B, Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200(Standard, Inverse), QR Code (Standard, Inverse, Micro) | ||
