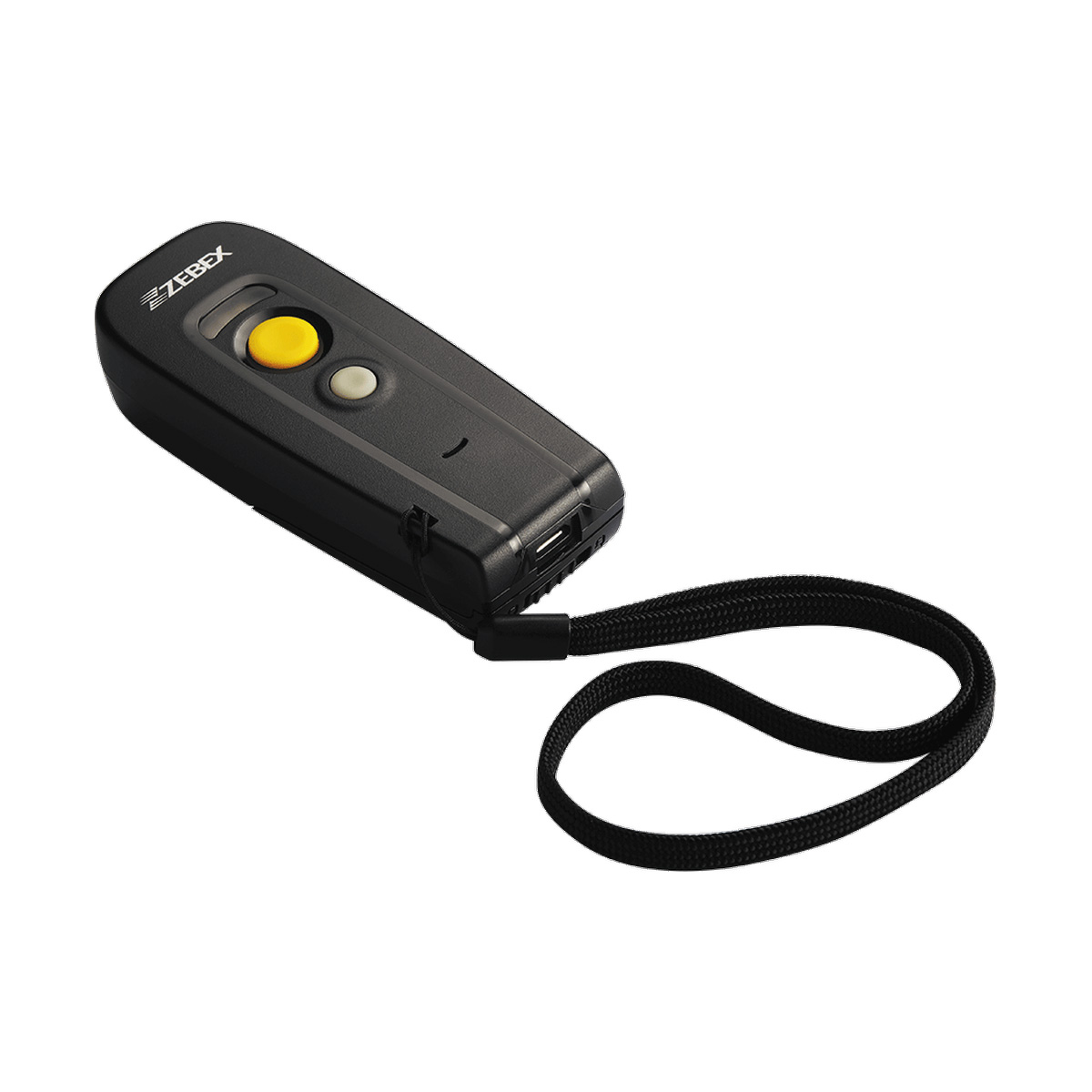

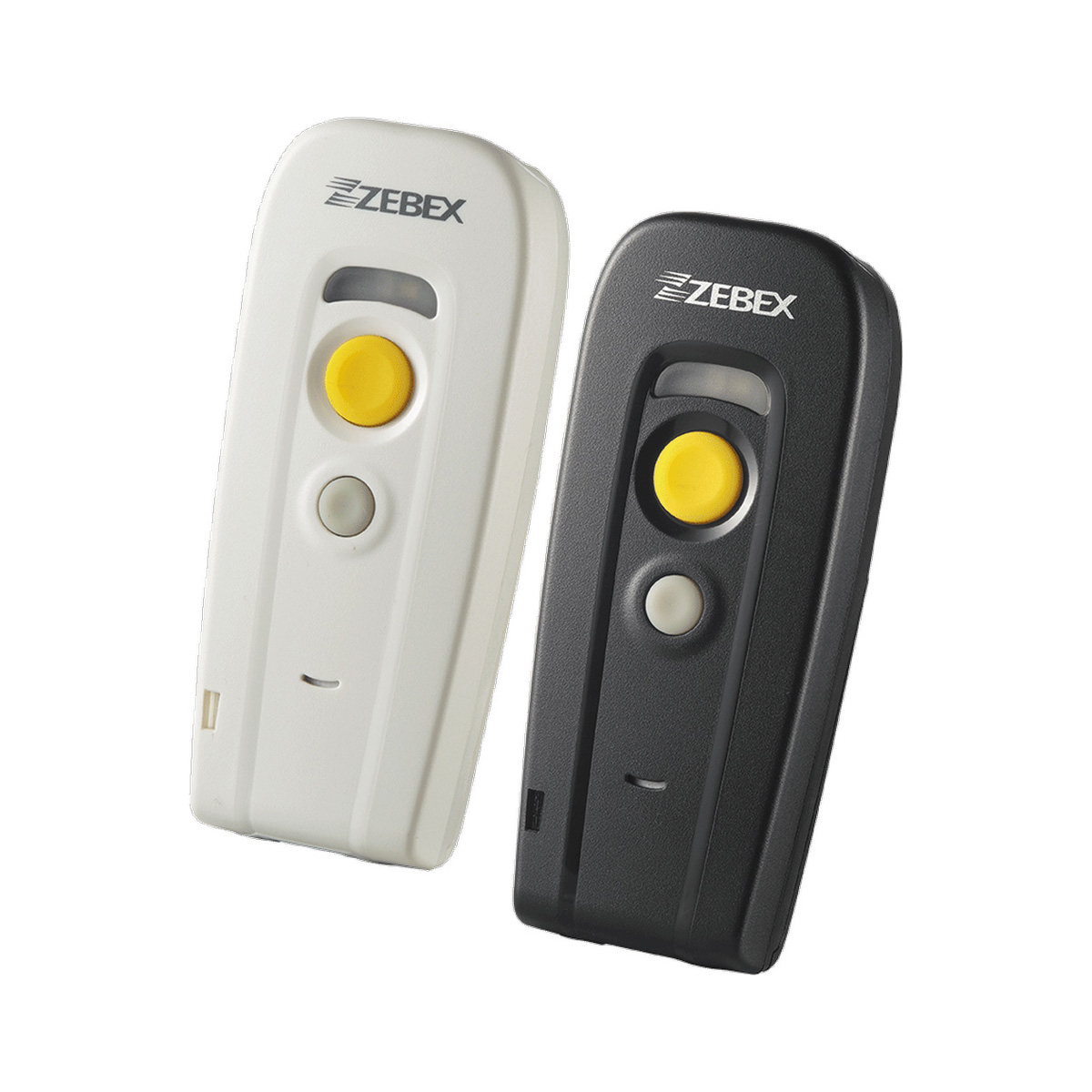

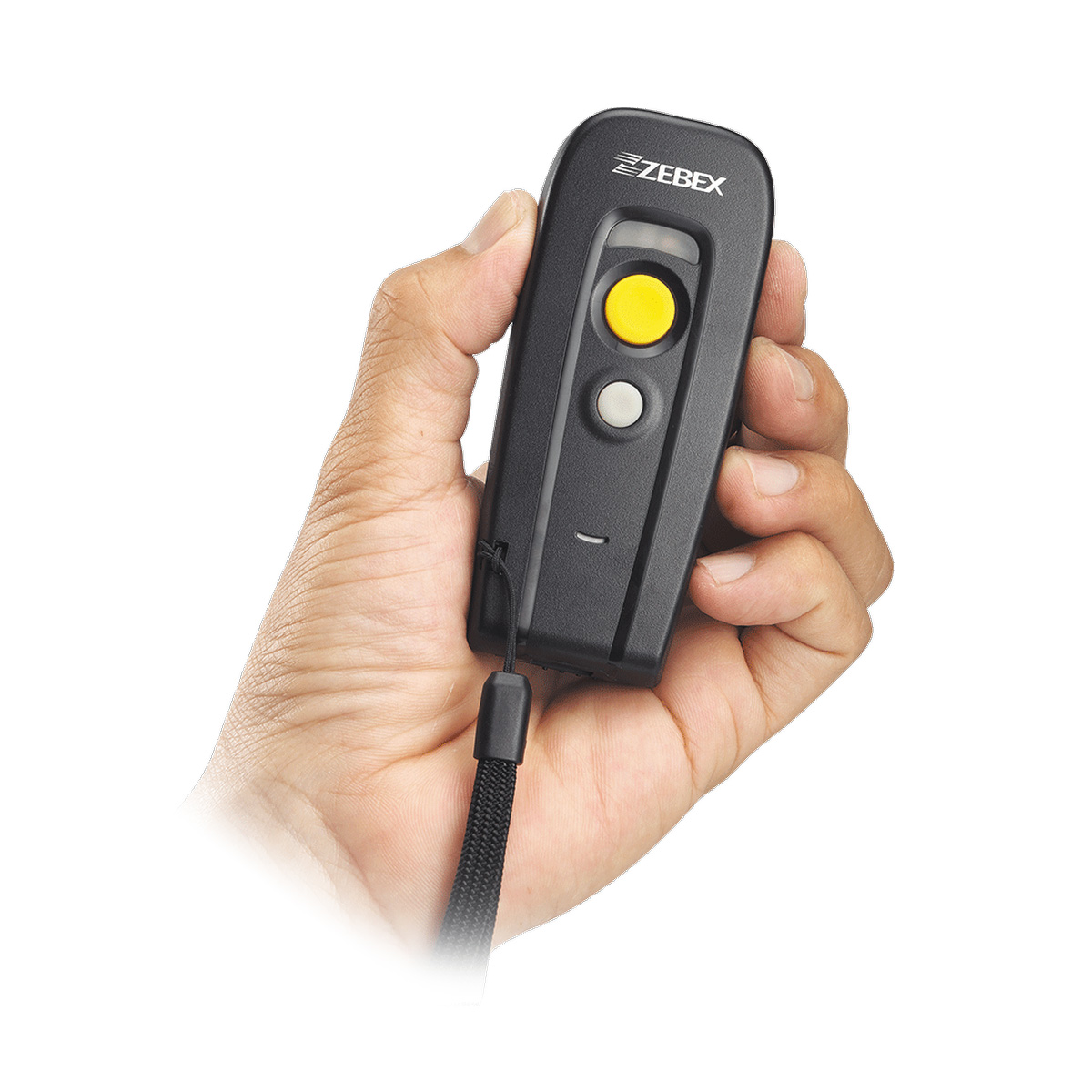

優れた読み取り性能を追求して設計されたコンパクトなZ-3250は、広い読み取り範囲と無線通信技術を備え、あらゆる用途に柔軟に対応します。
32ビットCPUと高性能スキャンエンジンを小型ながらも強力なボディに搭載し、使用環境を問わず、直感的かつ迅速な読み取りを実現します。
• コンパクト、軽量で持ち運びに最適
• iOS/AndroidデバイスおよびWindows PCに対応
• 32ビットマイクロプロセッサ搭載
• 携帯電話、タブレット、PC画面上のバーコード読み取りに対応
| Illumination Element | ||
|---|---|---|
| 617 nm visible red LED | ||
| Optical System | ||
| Linear CCD array | ||
| Depth of Field | ||
| 4 mil: 50 – 90 mm 5 mil: 50 – 120 mm 7.5 mil: 30 – 210 mm 10 mil: 30 – 240 mm 13 mil: 30 – 330 mm 20 mil: 40 – 380 mm Note: DOF may vary depending on environment condition and barcode quality. | ||
| Min. Bar Width | ||
| 4 mil | ||
| Scan Rate | ||
| 330 scans per second | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Three-color LED (green, red & blue), beep | ||
| Programmable Operation | ||
| Beeper tone & volume | ||
| System Interface | ||
| USB HID, Virtual COM, OPOS | ||
| Dimensions H x W x L | ||
|---|---|---|
| 97.0 × 40.0 x 23.0 mm | ||
| Weight (g) | ||
| 79.7 g (battery included) | ||
| Interface | ||
|---|---|---|
| RF wireless compatible with BT 2.1 SPP/HID profile mode | ||
| Working Range | ||
| Up to 100M (depends on operating environment) | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ± 10% | ||
| Operating Current | ||
| Charging: 440 mA; non-charging: 150 mA | ||
| Main Battery | ||
| 3.7V, 850 mAh, Li-ion rechargeable battery | ||
| Battery Life | ||
| Over 80 hours at 6 scans per minute (depending on condition) | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliant, VCCI, BSMI, UKCA | ||
| Operating Temperature | ||
|---|---|---|
| 0 °C to 50 °C (32°F – 122°F) | ||
| Storage Temperature | ||
| -20°C to 60°C (-4°F – 140°F) | ||
| Humidity | ||
| 5% – 95% RH (non-condensing) | ||
| Light Level | ||
| 0-100,000 Lux (fluorescence) | ||
| Drop Durability | ||
| Designed to withstand 1.2M drops | ||
| Environmental Sealing | ||
| IP43 rated sealing | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen | ||
