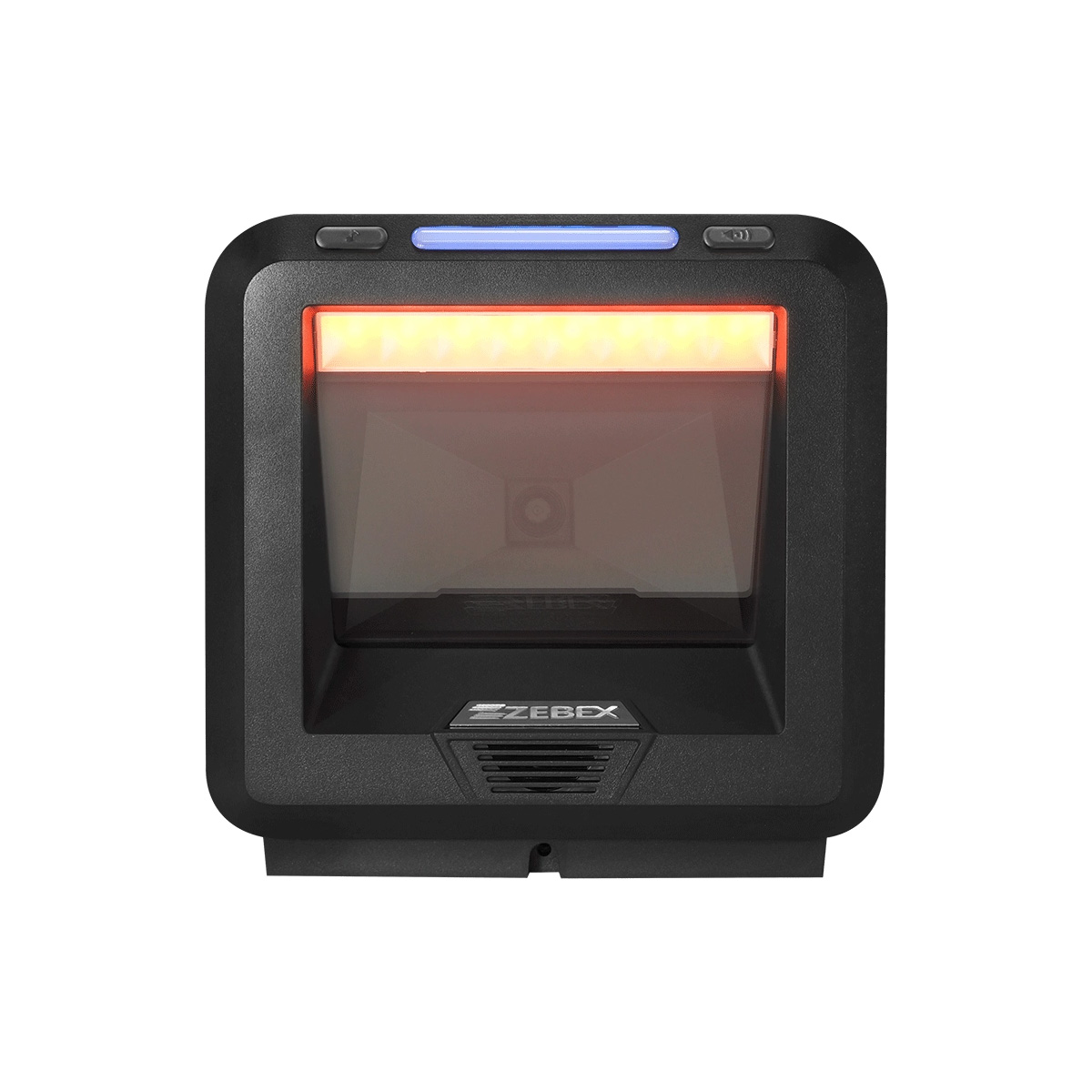

Z-8182 櫃檯式掃描器提供了 2D 圖像讀取的靈活性。新的 Imagine 技術允許使用一維和二維條碼實現多種功能，滿足您對常規市場標籤和消費者二維優惠券的需求。 Z-8182 不僅以其即時解碼性能提供了效率，還提供了出色的刷卡速度和寬掃描區域的便利性。這款功能強大的設備已準備好應對零售業中的所有挑戰。
• 在常見的一維和二維條碼上具有高速和可靠的性能
• 卓越的運動容差，高達每秒 4 米
• 輕鬆讀取手機屏幕上的條碼
• 醫療保健標籤合規性：支持 GS1 和 FMD 格式
| Illumination Element | ||
|---|---|---|
| 617 nm LED | ||
| Optical System | ||
| CMOS | ||
| Image Sensor | ||
| 1280 x 800 | ||
| Depth of Field | ||
| 5 mil (Code39): 0 – 80 mm 13 mil (EAN13): 0 – 220 mm Note: DOF may vary depending on environment condition and barcode quality. | ||
| Min. Bar Width | ||
| 4 mil (Code 39) | ||
| Scan Angle | ||
| 56.0° horizontal; 37.0° vertical | ||
| Sensitivity | ||
| 360° (omnidirectional rotational sensitivity) | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Beeper (Buzzer), LED (Blue/ Red) | ||
| Programmable Operation | ||
| Beeper tone & volume | ||

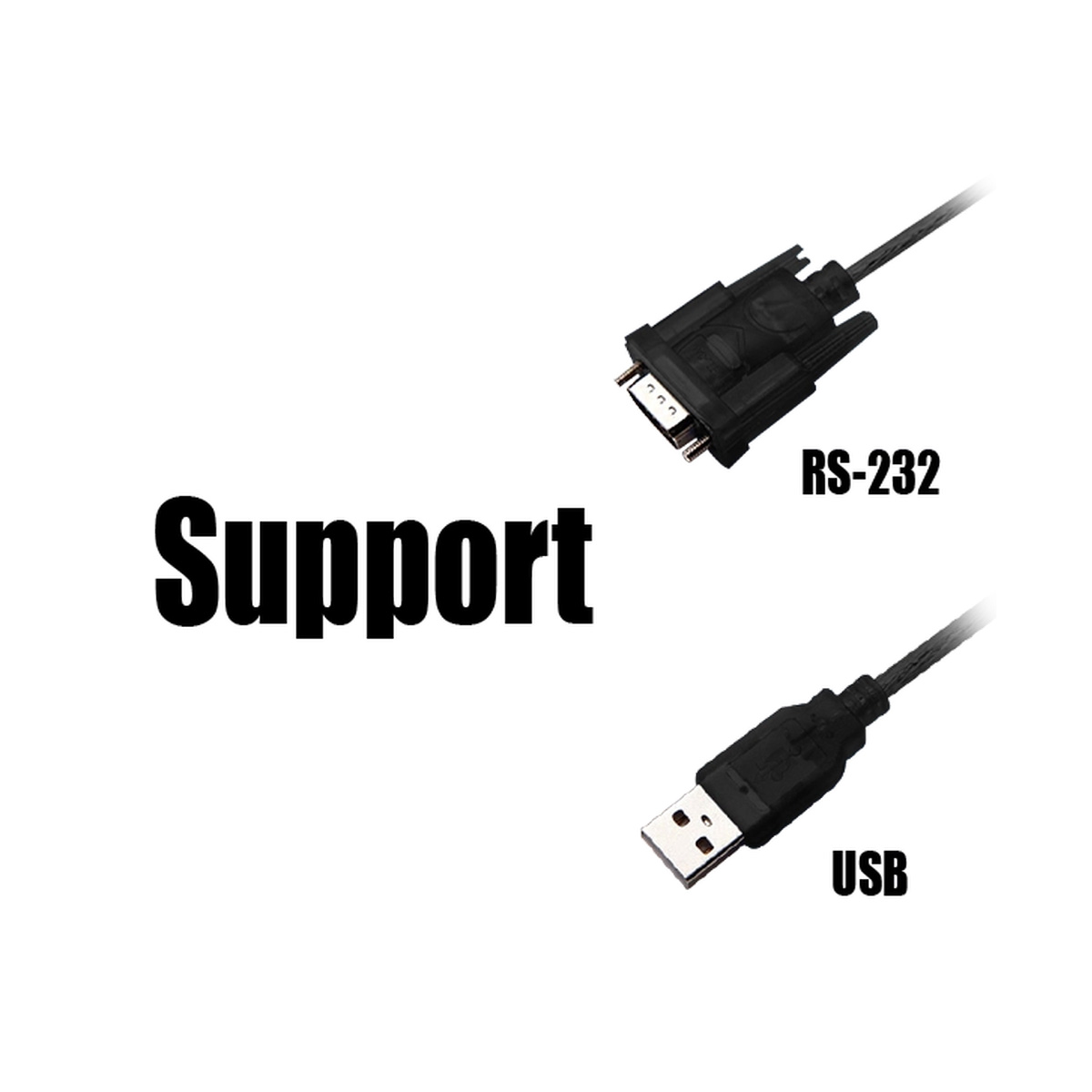

| System Interface | ||
| RS-232, USB | ||
| Motion Tolerance | ||
| 4.0 M/S | ||
| Dimensions H x W x L | ||
|---|---|---|
| 151.8 x 152.2 x 85.0 mm | ||
| Weight (g) | ||
| 470 g | ||
| Cable | ||
| Standard 2M straight | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ± 10% | ||
| Operating Current | ||
| 190 mA @ 5V ( Typical ) | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliant; VCCI; BSMI | ||
| Safety | ||
| IEC 62471 Exempt | ||
| Operating Temperature | ||
|---|---|---|
| 0° C ~ 50° C (32°F – 122°F) | ||
| Storage Temperature | ||
| -40°C - 70°C (-4°F – 140°F) | ||
| Humidity | ||
| 5% – 95% RH (non-condensing) | ||
| Light Level | ||
| 0 - 100,000 Lux ( fluorescence ) | ||
| Drop Durability | ||
| Designed to withstand 1.0M drops | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN (UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland), ISSN), Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5 IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked) | ||
| 2D Barcode | ||
| PDF417, Micro PDF417, Composite Codes Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200 (CC-A, CC-B, CC-C), (Standard, Inverse), QR Code (Standard, Inverse, Micro) | ||
