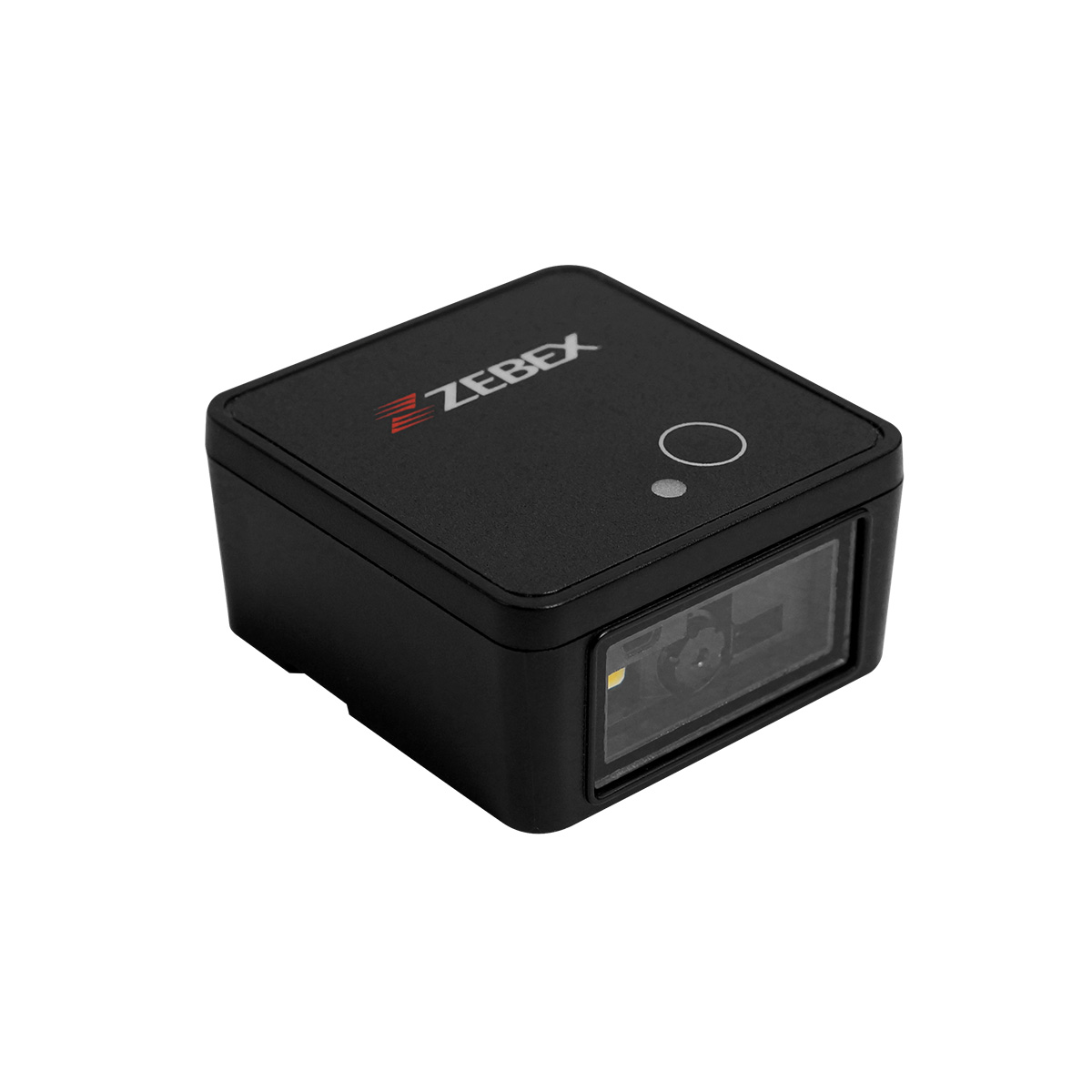

Z-5132 GT小巧且易於集成，幾乎可以安裝在任何地方。 Z-5132 GT 具有出色的功能，例如照明和瞄準燈關閉、紅外模式，並且非常適合讀取手機屏幕上的二維條碼。最重要的是，它受 IP65 保護，高度可靠的外部結構，可承受灰塵、噴水或多個方向的噴水。它還支持掃描藥品FMD和疫苗上的條碼GS1。 Z-5132 GT 非常適合嵌入式應用，例如工廠自動化、庫存管理、移動支付、自助登記、醫療和價格查詢機。
• IP65小型二維模塊
• 堅固型產品
• 出色的寬度讀取
• 在所有常見的一維和二維碼上具有高速和可靠的性能
• 易讀取手機、平板電腦或計算機屏幕上的條碼
• 醫療保健標籤合規性：支持GS1和FMD格式
| Aiming Element | ||
|---|---|---|
| 617 nm LED | ||
| Illumination Element | ||
| White LED | ||
| Optical System | ||
| CMOS | ||
| Image Sensor | ||
| 1280 x 800 | ||
| Depth of Field | ||
| Code39 (5 mil) : 60 - 160 mm EAN 13 (13 mil) : 40 - 280 mm (Note : DOF may vary depending on environment condition and barcode quality.) | ||
| Min. Bar Width | ||
| 4 mils (Code39) | ||
| Scan Angle | ||
| 38.6° H x 24.9° V | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Blue LED | ||
| Programmable Operation | ||
| Scan mode, Beeper tone | ||
| System Interface | ||
| Micro USB | ||
| Dimensions H x W x L | ||
|---|---|---|
| 19 × 38 × 38.6 mm (device only) | ||
| Weight (g) | ||
| 22 g | ||
| Cable | ||

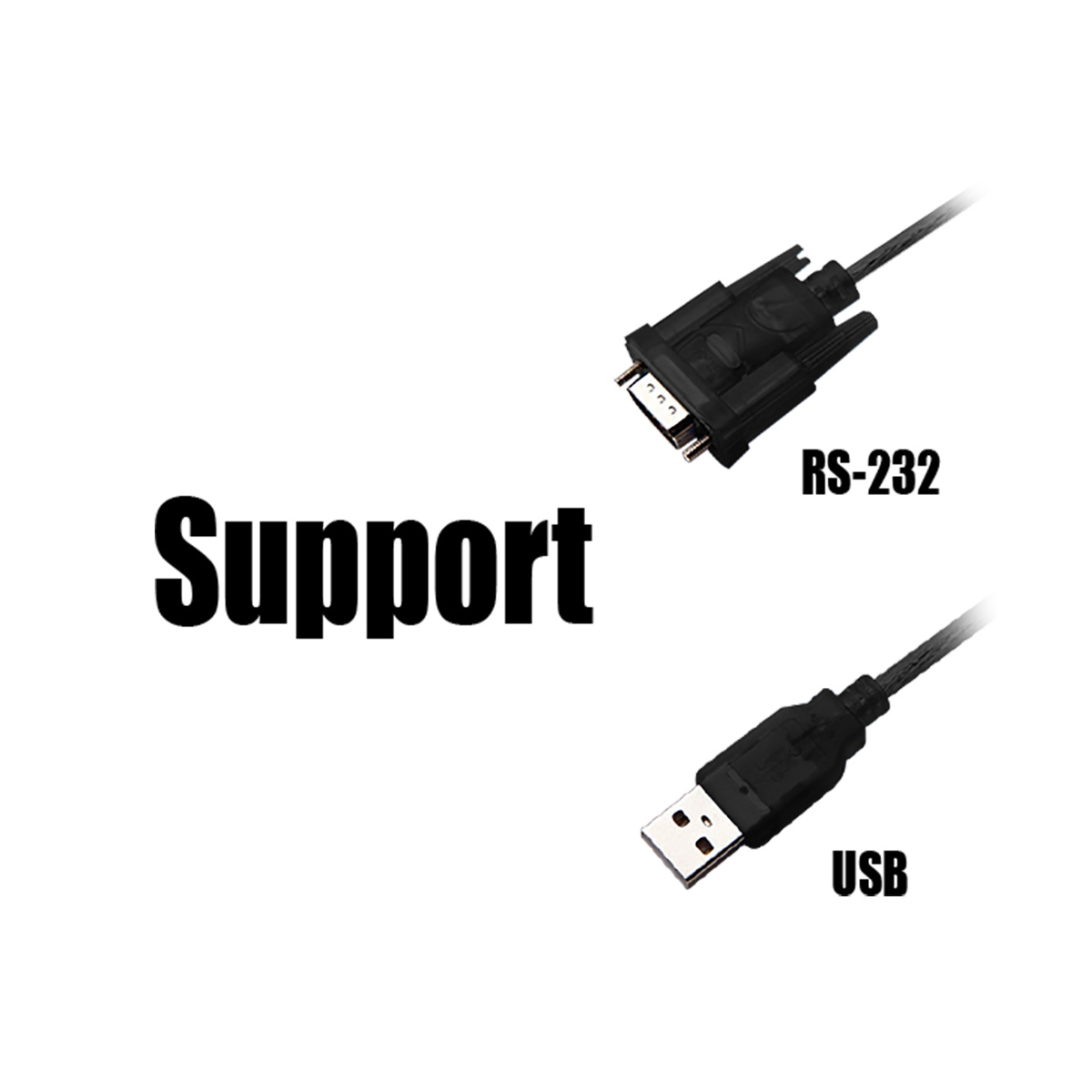

| Optional: USB, RS-232 | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ± 10% | ||
| Operating Current | ||
| 125 mA @ 5V (Typical ) | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliant; VCCI; BSMI, UKCA | ||
| Safety | ||
| IEC 62471 Exempt | ||
| Operating Temperature | ||
|---|---|---|
| -20°C – 50°C (-4°F – 122°F) | ||
| Storage Temperature | ||
| -40°C - 70°C (-40°F - 158°F) | ||
| Humidity | ||
| 5%~95% RH (non condensing) | ||
| Light Level | ||
| Max. 100,000 Lux (fluorescence) | ||
| Drop Durability | ||
| Designed to withstand 1.5M drops | ||
| Environmental Sealing | ||
| IP65 | ||
| Shock | ||
| 3000g/ 0.3ms/ 6 faces | ||
| Vibration | ||
| 4.45 grms, 20-2000Hz, 3 axes | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN (UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland),ISSN), Code 39 (Standard, Full ASCII, Trioptic, Code 32(Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5(Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5,Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar(Omnidirectional, Truncated, Stacked, Stacked Omnidirectional,Limited, Expanded, Expanded Stacked) | ||
| 2D Barcode | ||
| PDF417, MicroPDF417, Aztec (Standard, Inverse), Maxicode,Data Matrix/ECC 200 (Standard, Inverse), QR Code(Standard, Inverse, Micro)CODABLOCK FComposite Codes (CC-A, CC-B, CC-C) | ||
