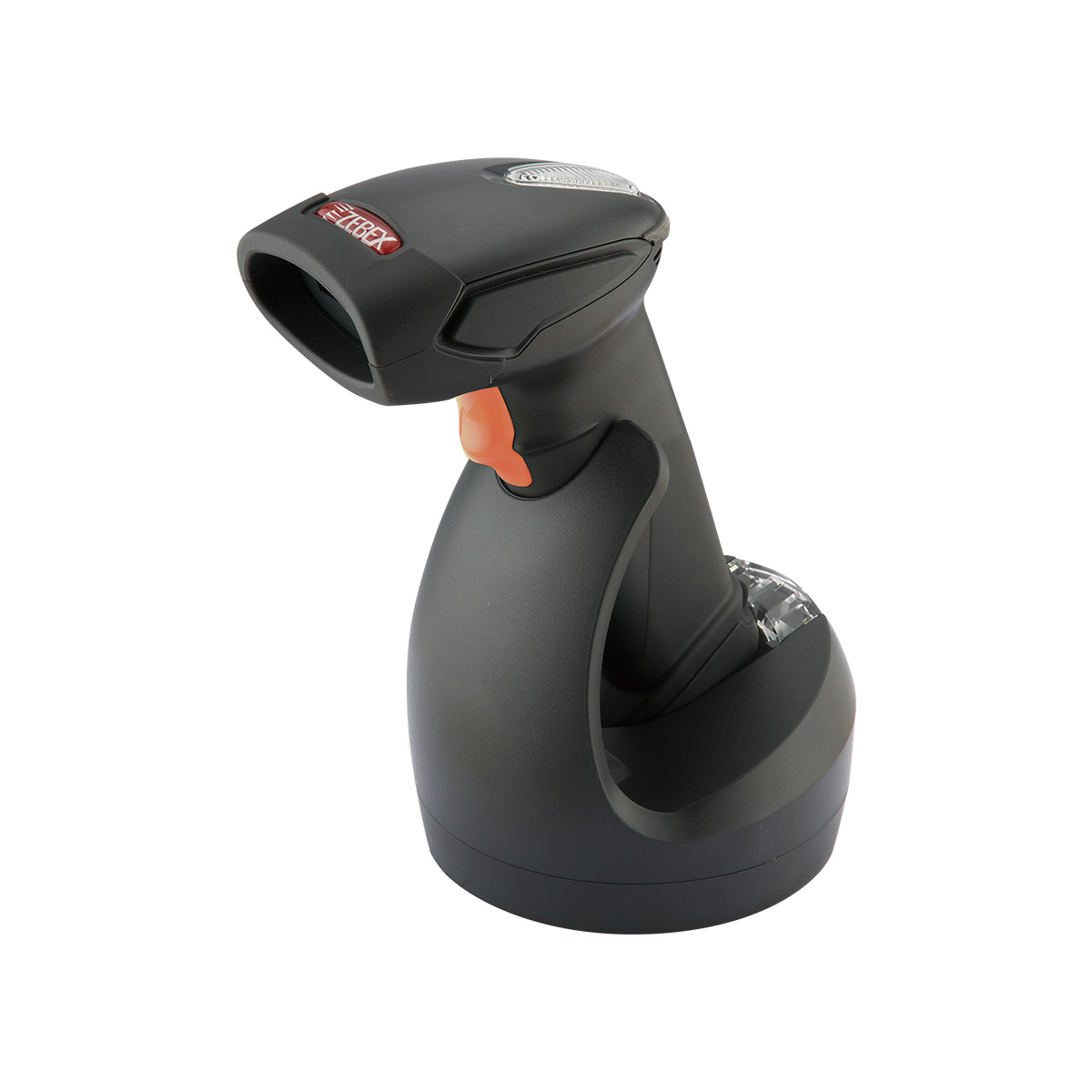

Z-3192BT Plus 是一款手持槍式無線 2D 影像讀取器，專為專業效能而設計。它採用高容量鋰離子充電電池，可延長使用時間並進行多次充電循環。用戶受益於 LED 指示和可編程蜂鳴器的直覺回饋，以及靈活的數據連接選項。其輕巧的設計確保易於操作，而其堅固的結構則提供了耐用性。這款掃描器擅長從各種裝置（包括手機和平板電腦）讀取條碼，並提供 100 公尺範圍內的無線掃描。 Z-3192BT Plus 具有流行的一維和二維條碼的高級解碼功能，是製造和物流的理想選擇，可提高效率和生產力。
• 100M 工作範圍內的無線自由度
• 資料連線靈活性
• 閃爍的 LED 指示和可編程蜂鳴器
• 重量輕、槍型，操作方便
• 解碼大多數一維和二維條碼
• 堅固的槍型設計，適合惡劣的工作條件
• 智慧充電，延長電池壽命
• 捕捉手機、平板電腦或電腦螢幕上的條碼
| Aiming Element | ||
|---|---|---|
| 617nm visible LED | ||
| Illumination Element | ||
| White LED | ||
| Optical System | ||
| CMOS | ||
| Image Sensor | ||
| 1280 x 800 | ||
| Depth of Field | ||
| Code39 ( 5 mil ) : 60 – 160 mm EAN13 ( 13miil ) : 40 – 270 mm | ||
| Min. Bar Width | ||
| 4mil @ PCS = 90% ( code 39 ) | ||
| Field of View | ||
| 38.6° horizontal; 24.9° vertical | ||
| Pitch / Roll / Skew angle | ||
| ±120° / 360° / ±120° | ||
| Sensitivity | ||
| 360° | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Beeper and LED | ||
| Programmable Operation | ||
| Beeper tone & volume | ||
| System Interface | ||
| RS-232, HID USB, USB Virtual COM | ||
| Dimensions H x W x L | ||
|---|---|---|
| 147.0 x 62.0 x 114.5 mm (device only) | ||
| Weight (g) | ||
| 197.5 g | ||
| Cable | ||
| Standard 2M straight | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ±10% | ||
| Operating Current | ||
| Charging : 500 mA ( external power ); Non-charging : 70 mA | ||
| Main Battery | ||

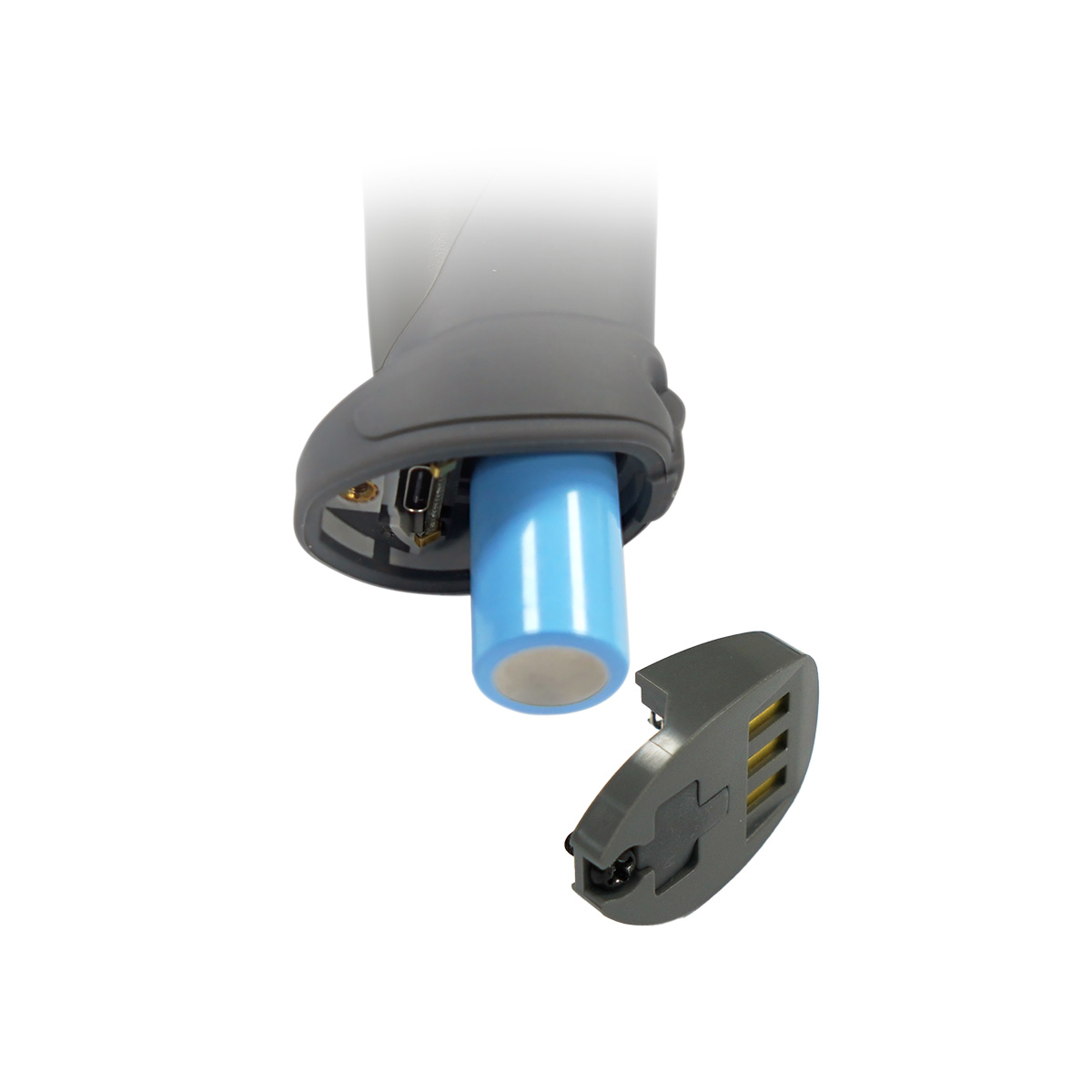

| 3.7V, 3,200 mAh, Li-ion battery (optional) | ||
| Recharging Time | ||
| Approximately 5 hours via cradle; 7 hours via USB cable | ||
| Number of Scan | ||
| Over 300,000 scans at 6 scan per second per full charge | ||
| LED Safety | ||
|---|---|---|
| IEC 62471 | ||
| EMC | ||
| CE & FCC DOC compliant, VCCI, BSMI | ||
| Radio | ||
| FCC Part 15C; CE EN 300 328; ARIB STD-T66 ( Japan ) ; NCC ( Taiwan ) | ||
| Operating Temperature | ||
|---|---|---|
| 0°C – 50°C (32°F – 122°F) | ||
| Storage Temperature | ||
| -20°C – 60°C (14°F – 140°F) | ||
| Humidity | ||
| 5% – 90% RH (non-condensing) | ||
| Light Level | ||
| Max. 100,000 Lux (any light condition) | ||
| Drop Durability | ||
| Designed to withstand 1.2M drops | ||
| 1D Barcode | ||
|---|---|---|
| UPC / EAN ( UPCA / UPCE / EAN-8 / EAN-13, ISBN ( Bookland ), Code 39 , Code 32 ( Italian Pharmacode ), Code 128, Code 93, Codabar, Interleaved 2 of 5,Standard 2 of 5,lndustrial 2 of 5, Matrix 2 of 5 ( Japannese ), Code 11, Telepen, Pharmacode, Chinese post code, MSI Plessey, GS1 DataBar ( Limited, Truncated, Stacked, Stacked Stacked, Expanded, Expanded Stacked ) | ||
| 2D Barcode | ||
| QR Code, Micro QR Code DataMatrix MaxiCode, Aztec, PDF417, MicroPDF417, PostNet, PLANET, Australia, Royal Post, CODABLOCF ( CCA, CCB, CCC ) | ||
