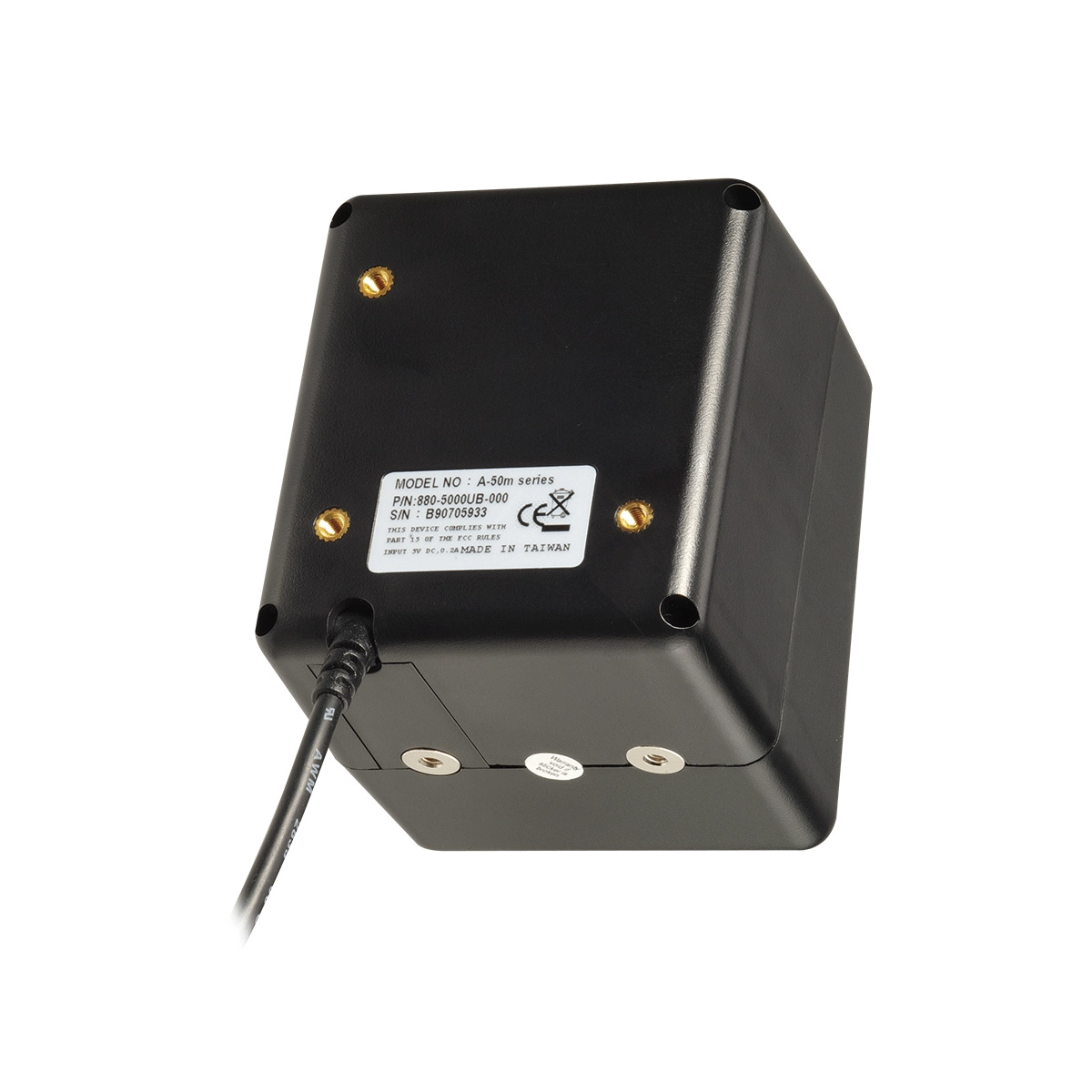

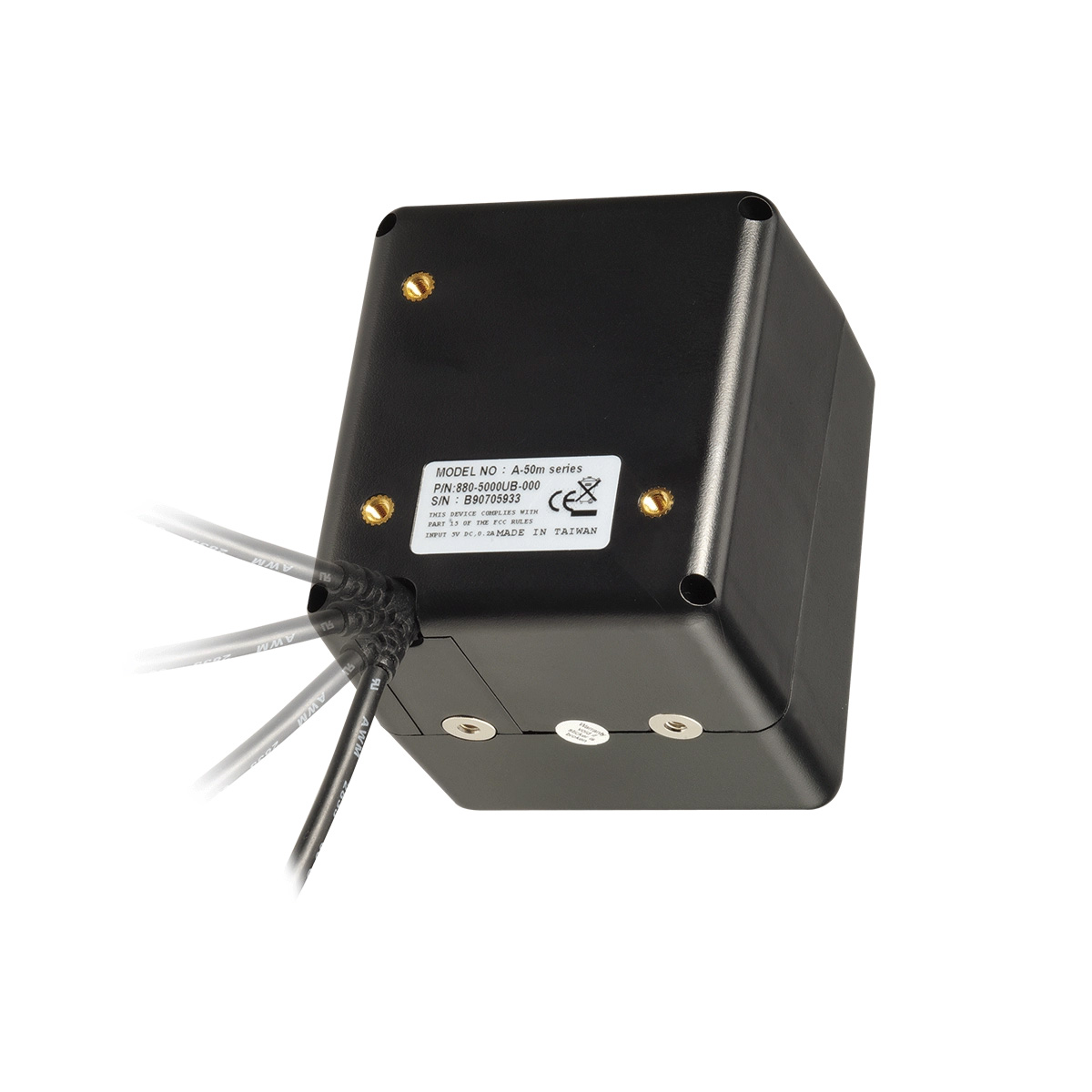

A-50M Plus全面掃描儀器是 A-50M 的增強版，帶有 32 位微處理器。 新機型將通過全方位激光掃描引擎和便捷的設計，繼續為您的企業帶來無與倫比的優勢。 A-50M Plus提供卓越的速度和寬範圍的掃描，就像其前身一樣，具有5個掃描場方向、20條掃描線，並且每秒可驅動高達1,440次掃描。 為了最大限度地輕鬆集成，新的A-50M Plus提供實用的小立方體設計和多個接口。它是適用於任何業務應用程序的高效解決方案。
• 32 位微處理器
• 卓越的掃描性能
• 智能立體設計，易於集成
• 靈活的溝通
• 專有的 Z-SCAN+ 技術
| Illumination Element | ||
|---|---|---|
| 650 nm visible laser diode (VLD) | ||
| Depth of Field | ||
| 5 mil: 30 – 80 mm 7.5 mil: 0 – 150 mm 10 mil: 0 – 160 mm 13 mil: 0 – 200 mm 20 mil: 0 – 260 mm Note: DOF may vary depending on environment condition and barcode quality. | ||
| Min. Bar Width | ||
| 5 mil @ PCS=90% | ||
| Scan Lines | ||
| 20 | ||
| Scan Pattern | ||
| 5 directions of scan field | ||
| Scan Rate | ||
| 1, 400 scans per second | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Two-color LED (blue & red) | ||
| Beeper Operation | ||
| Programmable tone & beep time | ||
| System Interface | ||
| IBM 46xx, OEM (IBM) USB, RS-232, HID USB, USB Virtual COM | ||
| Dimensions H x W x L | ||
|---|---|---|
| 72.0 x 64.0 x 68.0 mm | ||
| Weight (g) | ||
| 175 g (device only) | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ± 10% | ||
| Power Consumption | ||
| 1.5 watts | ||
| Operating Current | ||
| 200 mA @ 5V ( Typical ) | ||
| Laser Class | ||
|---|---|---|
| CDRH Class IIa; IEC 60825-1: Class 1 | ||
| EMC | ||
| CE & FCC DOC compliant, VCCI, BSMI, UKCA | ||
| Operating Temperature | ||
|---|---|---|
| 0°C – 50°C (32°F – 122°F) | ||
| Storage Temperature | ||
| -20°C - 60°C (-4°F – 104°F) | ||
| Humidity | ||
| 5% – 95% RH (non-condensing) | ||
| Light Level | ||
| Max 4500 Lux (fluorescent) | ||
| Drop Durability | ||
| Designed to withstand 1M drops | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded | ||
