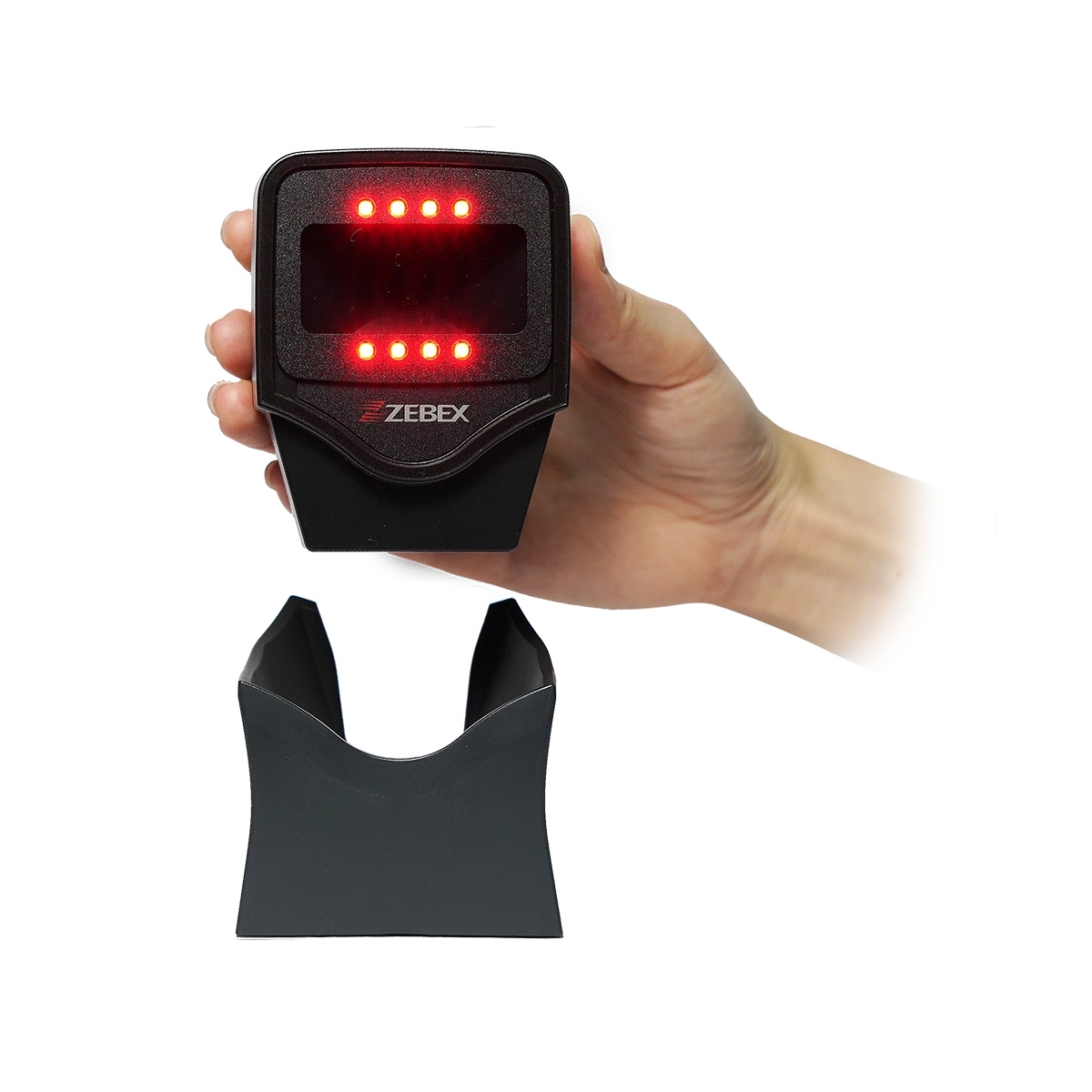

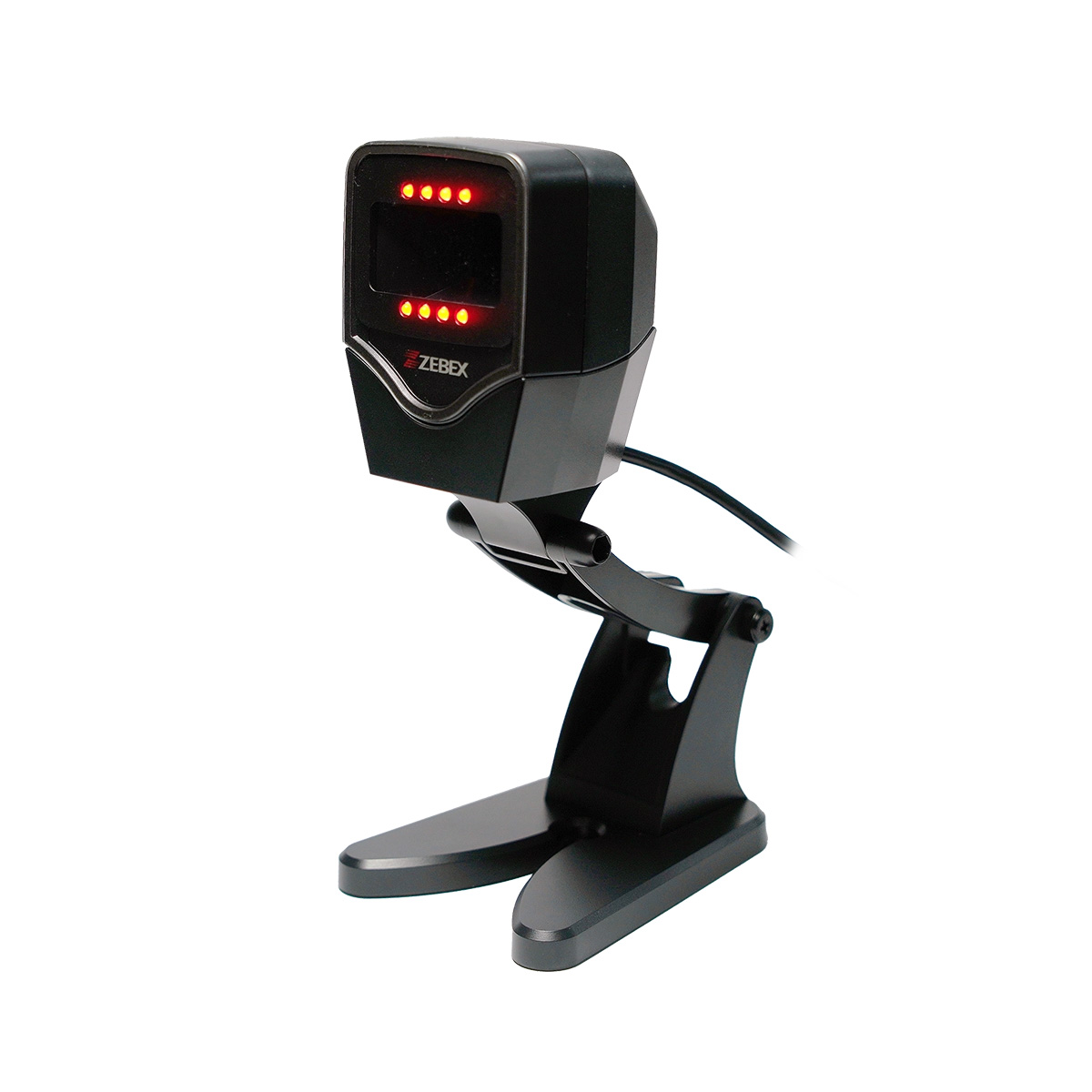

Looking for a compact and versatile device to boost your work productivity? Look no further than the Z-6012 GT 2D Image Hands-Free Scanner. This powerful device can be used as a standalone or installed in a kiosk with its attached cradle, offering flexibility in how you use it. Installation is a breeze thanks to the scanner's universal mounting holes and tripod socket. The device's IPX5 / IP54 waterproof and dustproof design also ensures durability in harsh environments, providing peace of mind that it will last. The Z-6012 GT scanner features a Phone mode for faster screen reading and a full planar window for easy cleaning, making it great for various applications, whether on a counter or integrated. Whether you're looking to streamline your workflow or enhance your customer experience, the Z-6012 GT 2D Image Hands-Free Scanner is the perfect device for you.
• Compact and Practical
• Multi-purpose cradle
• Universal mounting holes and tripod socket
• IPX5 / IP54 waterproof
• Phone mode to quickly scan a barcode at low-brightness
on a smartphone screen
• Full planar window for easy cleaning
| Illumination Element | ||
|---|---|---|
| 617 nm LED | ||
| Optical System | ||
| CMOS | ||
| Image Sensor | ||
| 1280 x 800 | ||
| Depth of Field | ||
| Code39 ( 4 mil ) : 50 – 80 mmCode39 ( 5 mil ) : 50 – 120 mmEAN 13 ( 13 mil ) : 10 – 200 mm(Note : DOF may vary depending on environment condition andbarcode quality) | ||
| Min. Bar Width | ||
| 4 mil ( Code 39 ) | ||
| Scan Angle | ||
| 56.0° horizontal; 37.0° vertical | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Two-color LED ( Blue & Red ) | ||
| Programmable Operation | ||
| Scan mode, Beeper tone | ||
| System Interface | ||
| RS-232, USB, USB Type-C | ||
| Dimensions H x W x L | ||
|---|---|---|
| 110.9 x 70.0 x 65.8 mm ( On fixed stand ) | ||
| Weight (g) | ||
| 225 g ( With stand ) | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ±10% | ||
| Operating Current | ||
| 200 mA typical | ||
| EMC | ||
|---|---|---|
| CE & FCC, VCCI, BSMI, UKCA | ||
| Safety | ||
| IEC 62471 | ||
| Operating Temperature | ||
|---|---|---|
| -10°C ~ 50°C ( 14°F ~ 122°F ) | ||
| Storage Temperature | ||
| -40°C ~ 70°C ( -40°F ~ 158°F ) | ||
| Humidity | ||
| 5% ~ 95% RH (non-condensing) | ||
| Light Level | ||
| Max. 100,000 Lux (Typical 80,000 Lux) | ||
| Drop Durability | ||
| Designed to withstand 1M drops | ||
| Environmental Sealing | ||
| IPX5 / IP54 | ||
| Shock/Vibration | ||
| 4.45 grms, 20-2000Hz, 3 axes | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN (UPC-A / UPC-E, EAN-8 & EAN-13, ISBN(Bookland), ISSN), Code 39 (Standard,Full ASCII,Trioptic, Code 32 (italian Pharmacode), Code 128, Code93, Codabar, 2 of 5 (interleaved 2 of 5, Discrete 2 of 5,IATA, Matric 2 of 5, Code 11), MSI Plessey, GS1DataBard (Omnidirectional, Truncated, Stacked, StackedOmnidirectional, Limited, Expanded, Expanded Stacked) | ||
| 2D Barcode | ||
| PDF417, MicroPDF417, Composite Codes (CC-A, CC-B,CC-C), Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200 (Standard, Inverse), QR Code (Standard,Inverse, Micro) | ||
