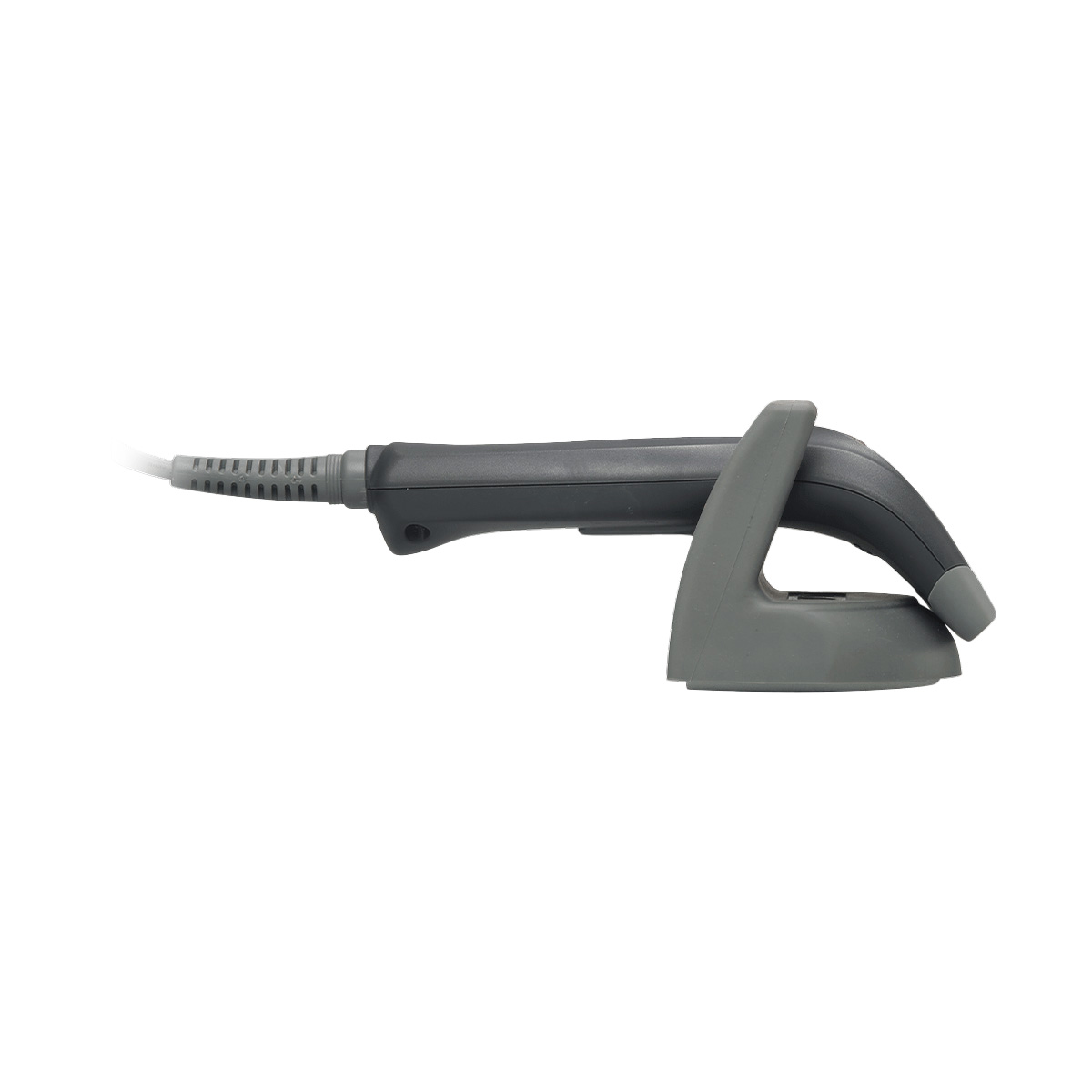

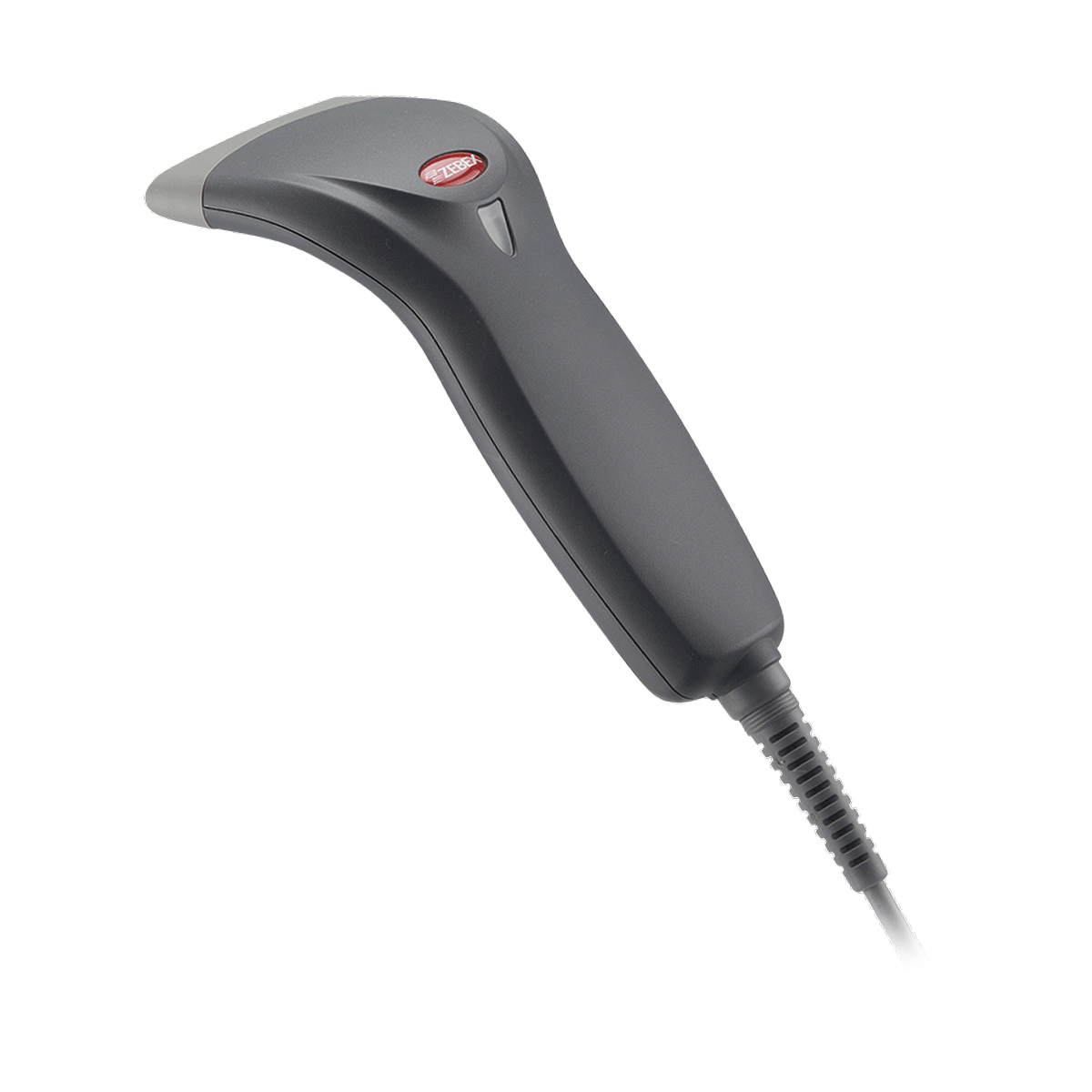

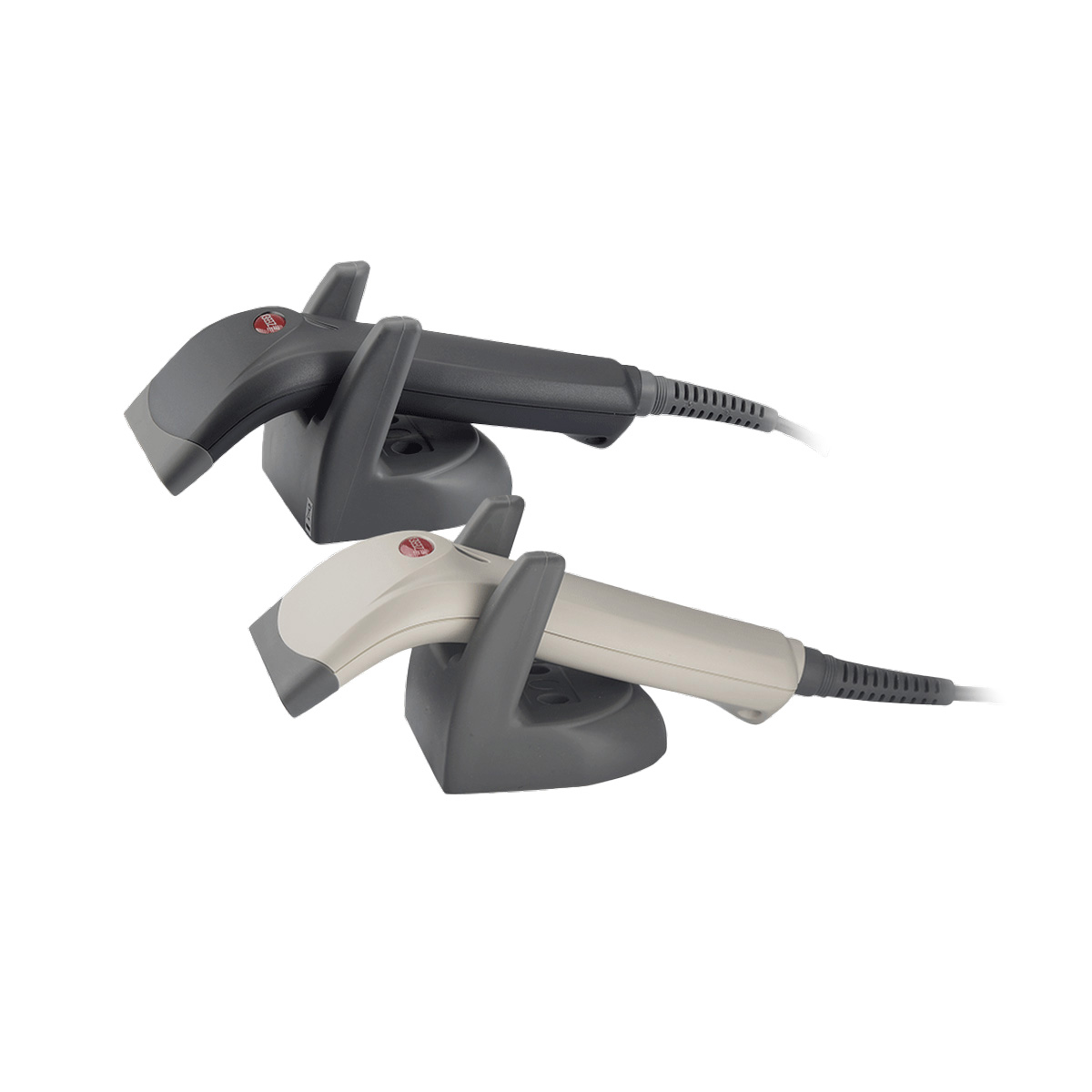

The sleek new Z-3220 Plus delivers outstanding scanning performance at a competitive price.
Specially designed for first time users, the scanner is ergonomically shaped and employs a field replaceable cable allowing for fast and easy disconnection from the host. With its newly improved decoding capability, the scanner provides an exceptional first-read-rate, making it ideal for retail applications.
• Proprietary Ultrascan decoding technology
• Light and rugged design
• Advanced image capture technology
• Multi-interface communication
• Ideal for beginners
• Captures barcodes on mobile phone, tablet, or computer screens
| Illumination Element | ||
|---|---|---|
| 625 nm visible LED | ||
| Optical System | ||
| Linear CCD array | ||
| Microprocessor | ||
| 32-bit | ||
| Depth of Field | ||
| Min. bar width: 3 mil 4 mil: 0 – 45 mm 5 mil: 0 – 70 mm 7.5 mil: 0 – 80 mm 10 mil: 0 – 90 mm 13 mil: 0 – 100 mm 20 mil: 0 – 120 mm Note: DOF may vary depending on environment condition and barcode quality. | ||
| Scan Rate | ||
| 250 scans per second | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Two colors LED, beep | ||
| Beeper Operation | ||
| Programmable tone & beep time | ||
| System Interface | ||
| RS-232, HID USB, USB Virtual COM, OPOS, JPOS | ||
| Dimensions H x W x L | ||
|---|---|---|
| 161.5 × 72.5 × 55.2 mm (device only) | ||
| Weight (g) | ||
| 91 g (device only) | ||
| Cable | ||
| Standard 2M straight | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ±10% | ||
| Operating Current | ||
| 60 mA @ 5V ( Typical ) | ||
| Standby Current | ||
| 55 mA typical | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliant, VCCI, BSMI, UKCA | ||
| Operating Temperature | ||
|---|---|---|
| 0 °C to +50 °C (32°F – 122°F) | ||
| Storage Temperature | ||
| -20°C to 60°C (-4°F – 140°F) | ||
| Humidity | ||
| 5% – 95% RH (non-condensing) | ||
| Light Level | ||
| Max. 6,000 Lux (fluorescence) | ||
| Drop Durability | ||
| Designed to withstand 1.5M drops | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen | ||
