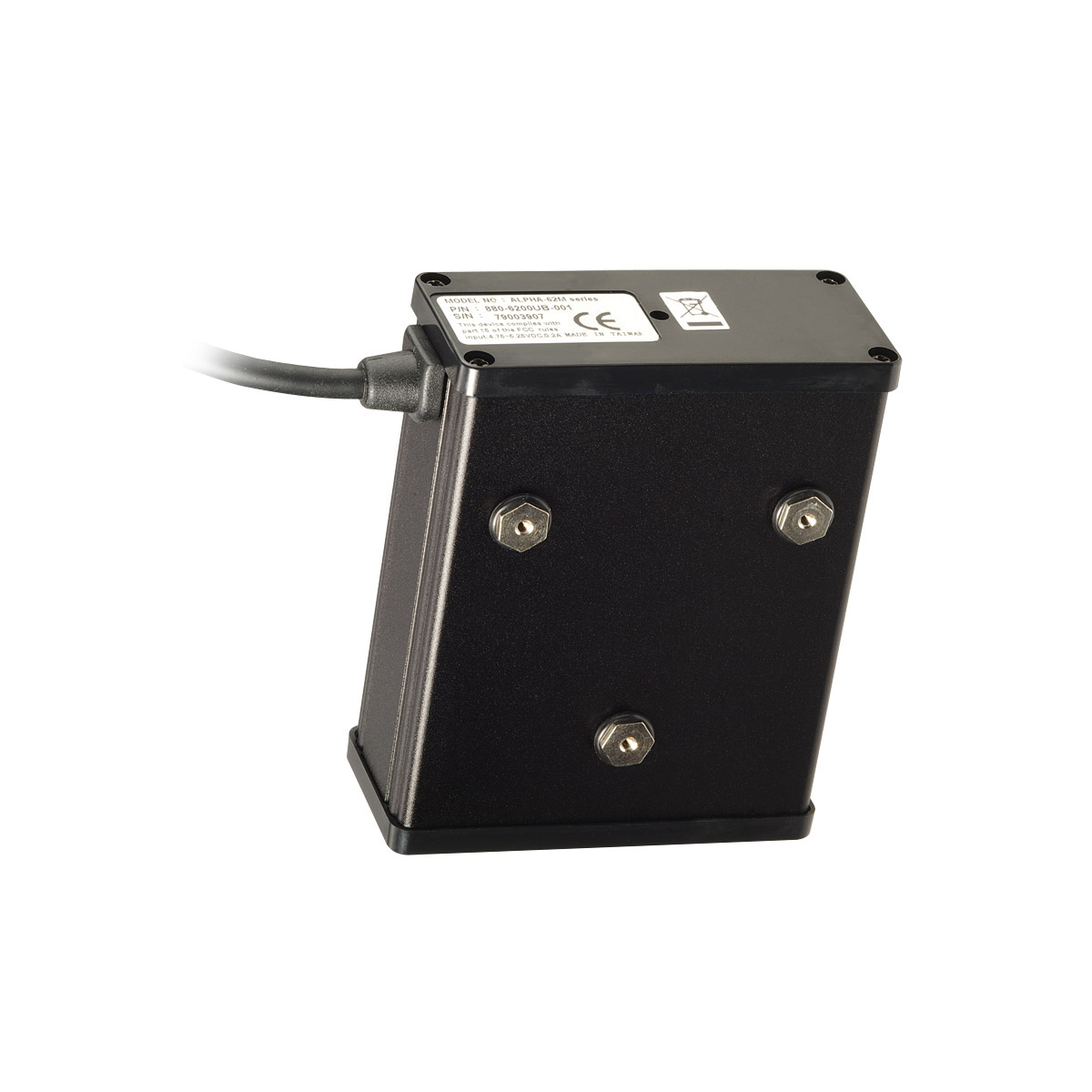

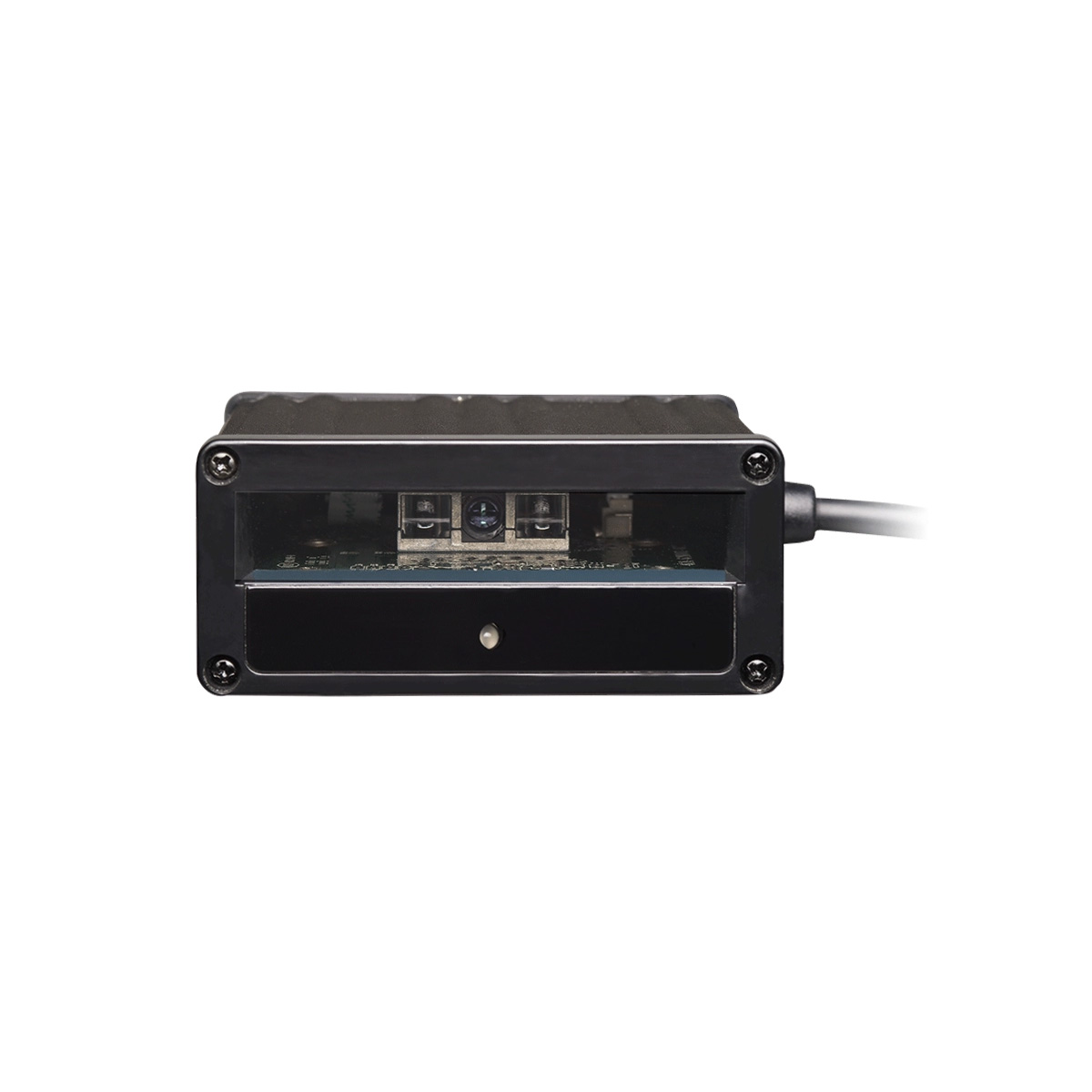

The middle-range scan module is highly customizable and simple to use.
With an easy-to-integrate design and an outstanding scanning performance, this middle-range CCD scan module is especially made for embedded scanning solution.
Its powerful linear CCD array enables 330 scans per second with a minimum resolution of 4 mil for fast scans.
The module has a specially designed CCD scan engine with light beam bright and clear as laser beam that gives user best visual indication and its powerful high resolution CCD acts in remarkable performance.
• Proprietary Ultrascan decoding technology
• Compact industrial housing design
• Flexible communications
• Analog image capture technology
• Captures barcodes on mobile phone, tablet, or computer screens
| Illumination Element | ||
|---|---|---|
| 617 nm visible LED | ||
| Optical System | ||
| Linear CCD array | ||
| Microprocessor | ||
| 32 bit | ||
| Depth of Field | ||
| 4 mil: 20 – 80 mm 5 mil: 15 – 115 mm 7.5 mil: 10 – 160 mm 10 mil: 10 – 220 mm 13 mil: 5 – 280 mm 20 mil: 20 – 360 mm Note: DOF may vary depending on environment condition and barcode quality. | ||
| Min. Bar Width | ||
| 0.1 mm (0.07 mm actually); (Code 39, PCS=90%) | ||
| Scan Rate | ||
| 330 scans per second | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Two-color LED (green & red) | ||
| Programmable Operation | ||
| Programmable tone & beep time | ||
| Connector | ||
| Keyboard, RS-232, HID USB, USB Virtual COM, OPOS, JPOS | ||
| Dimensions H x W x L | ||
|---|---|---|
| 30.3 x 65.0 x 80.0 mm | ||
| Weight (g) | ||
| 121.5 g (device only) | ||
| Cable | ||
| Standard 2M straight | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ± 10% | ||
| Operating Current | ||
| 100 mA @ 5V ( Typical ) | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliant, VCCI, BSMI | ||
| Operating Temperature | ||
|---|---|---|
| 0°C – 50°C (32°F – 122°F) | ||
| Storage Temperature | ||
| -20°C - 60°C (-4°F – 140°F) | ||
| Humidity | ||
| 20%~95% RH (non condensing) | ||
| Light Level | ||
| 0 – 100,000 Lux | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen | ||
