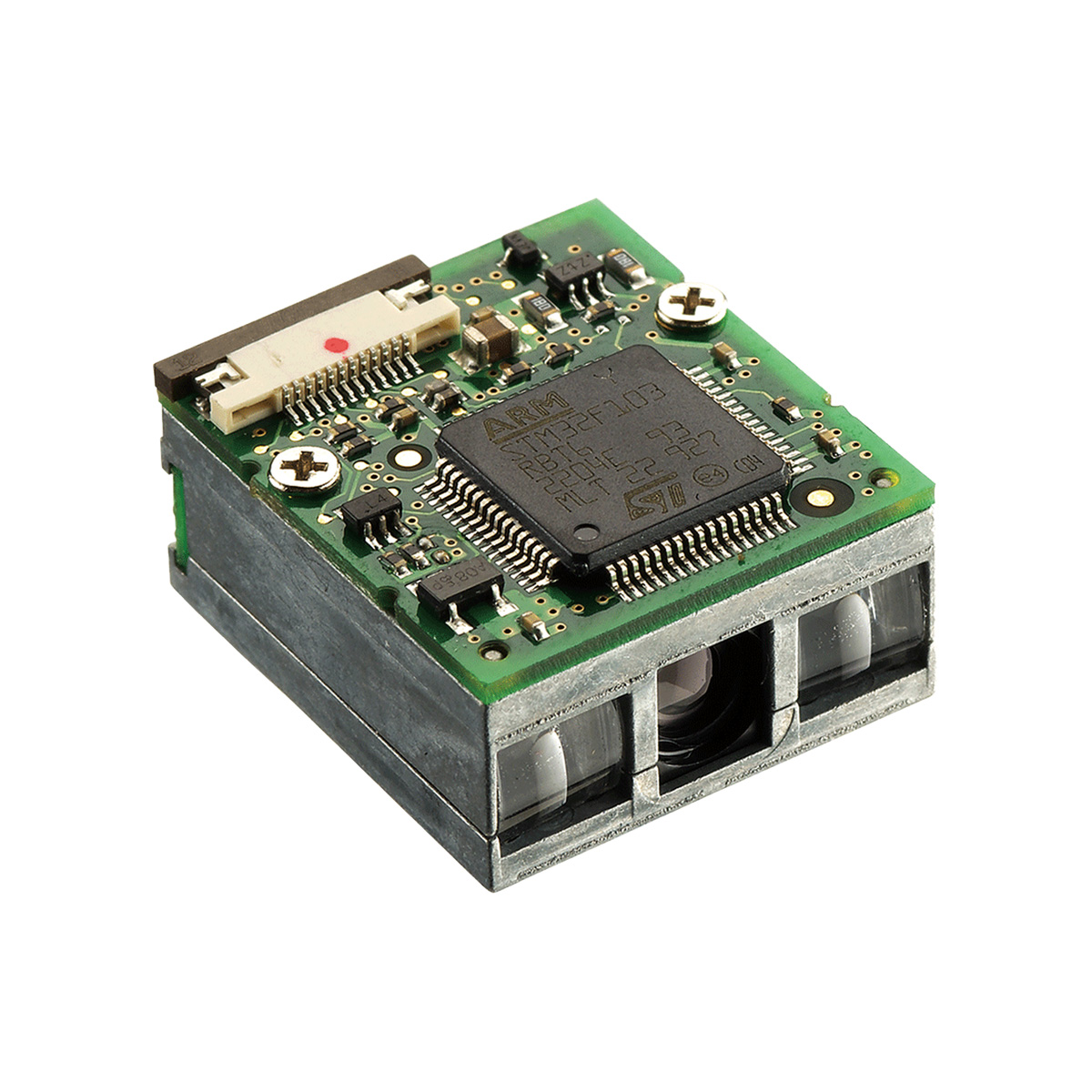

Z-5111 is the second generation miniature CCD scan engine made by ZEBEX with the same compact form factor and upgraded 32-bit microprocessor.
The new model has a sharper scanning performance and the same built-in flexibility compare to the previous model and supports standard serial, USB interface, and USB virtual COM port.
It can be easily integrated without modifying existing hardware platform in most cases. Featuring one of the smallest footprints available and two mounting holes reserved, Z-5111 is designed for effortless integration into most data capture applications.
• Durable and compact in size with industrial form factor
• Outstanding scanning performance of up to 330 scans per second
• 0 – 100,000 ambient light immunity to satisfy every application even under sunlight
• Flexible communications
| Illumination Element | ||
|---|---|---|
| 617 nm visible LED; bright laser-imitated scanning line | ||
| Optical System | ||
| Linear CCD array | ||
| Microprocessor | ||
| 32-bit | ||
| Depth of Field | ||
| 4 mil: 60 – 120 mm 5 mil: 55 – 160 mm 7.5 mil: 50 – 210 mm 10 mil: 40 – 280 mm 13 mil: 50 – 330 mm 20 mil: 50 – 420 mm Note: DOF may vary depending on environment condition and barcode quality. | ||
| Min. Bar Width | ||
| 0.1 mm (0.07 mm actually) | ||
| Scan Rate | ||
| 330 scans per second | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Programmable Operation | ||
| Programmable tone & beep time | ||
| System Interface | ||
| 12 lower contact ZIF connector | ||
| Connector | ||
| RS-232 (TTL level), HID USB, USB Virtual COM, OPOS, JPOS | ||
| Dimensions H x W x L | ||
|---|---|---|
| 11.8 x 20.5 x 22.8 mm | ||
| Weight (g) | ||
| 12 g | ||
| Power Consumption | ||
|---|---|---|
| 3.3 VDC ± 10% | ||
| Operating Current | ||
| 105 mA @ 3.3V ( Typical ) | ||
| Standby Current | ||
| 50 uA | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliance, VCCI, BSMI | ||
| Operating Temperature | ||
|---|---|---|
| 0°C – 50°C (32°F – 122°F) | ||
| Storage Temperature | ||
| -20°C - 60°C (-4°F – 140°F) | ||
| Humidity | ||
| 5% – 95% RH (non-condensing) | ||
| Light Level | ||
| 0-100,000 Lux (any lighting condition) | ||
| Shock | ||
| 2,000 G | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen | ||
